Twin Series

Single Nose Wheel Double Nose Wheel Wheeled Helicopter up to 85t up to 75t up to 50t up to 39t

TWIN Series

single-nosewheel.svg double-nosewheel.svg wheeled-heli2.svg up to 85t up to 75t up to 50t up to 39t

The world's most compact tug suitable for all aircraft up to 85 tonnes. 4 different models available for aircraft up to 39, 50*, 75* and 85t (*also available as our model „Flat“ with extreme low height).

The advantages of TWIN models:
Versatility, low operational cost and ease of use.

More Videos




Pushback of a Global Express




TWIN in daily use on an apron




TWIN moves a Gulfstream G650




TWIN moves a Gulfstream G5 with slope and rainy surface

Photogallery

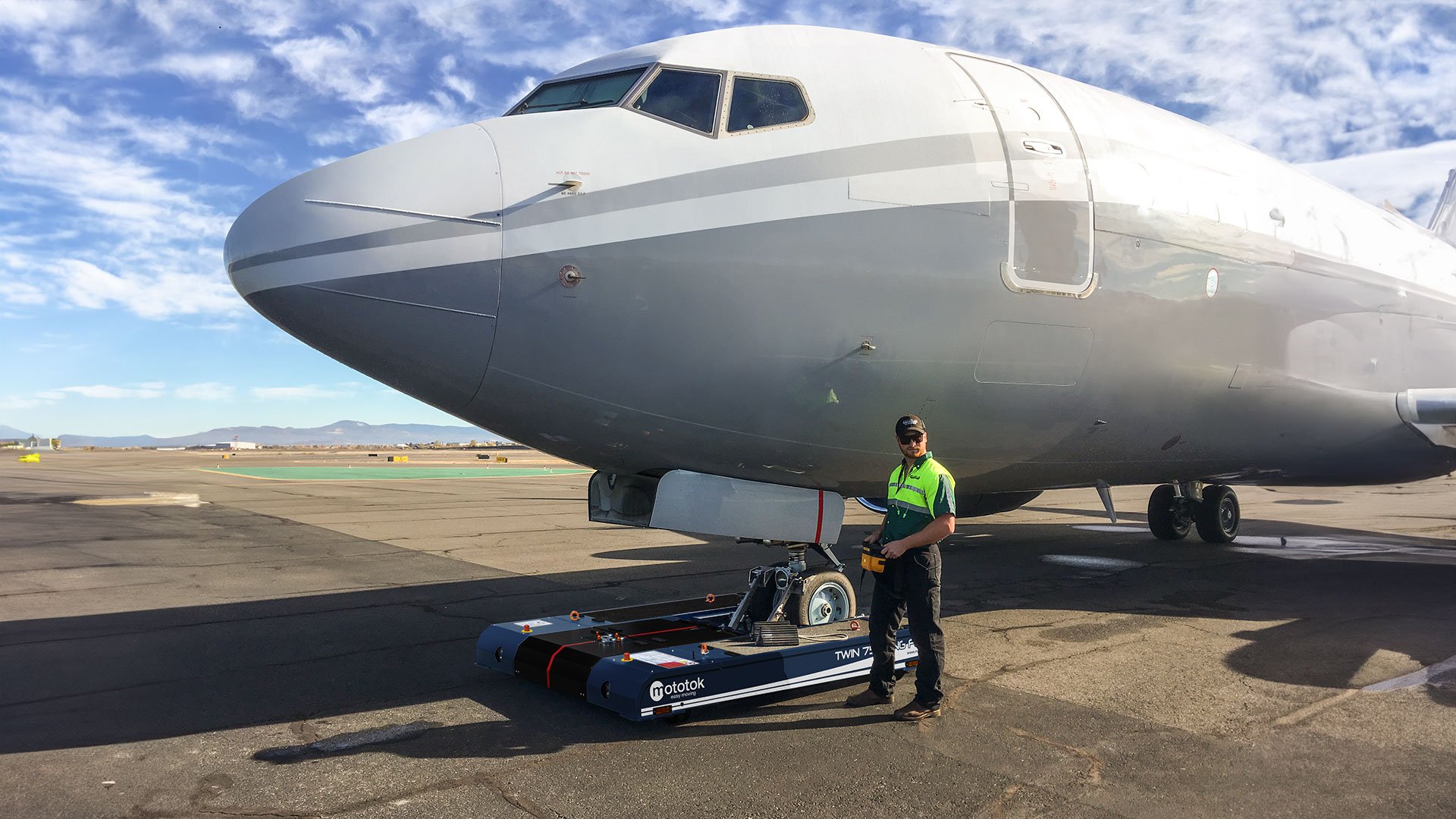

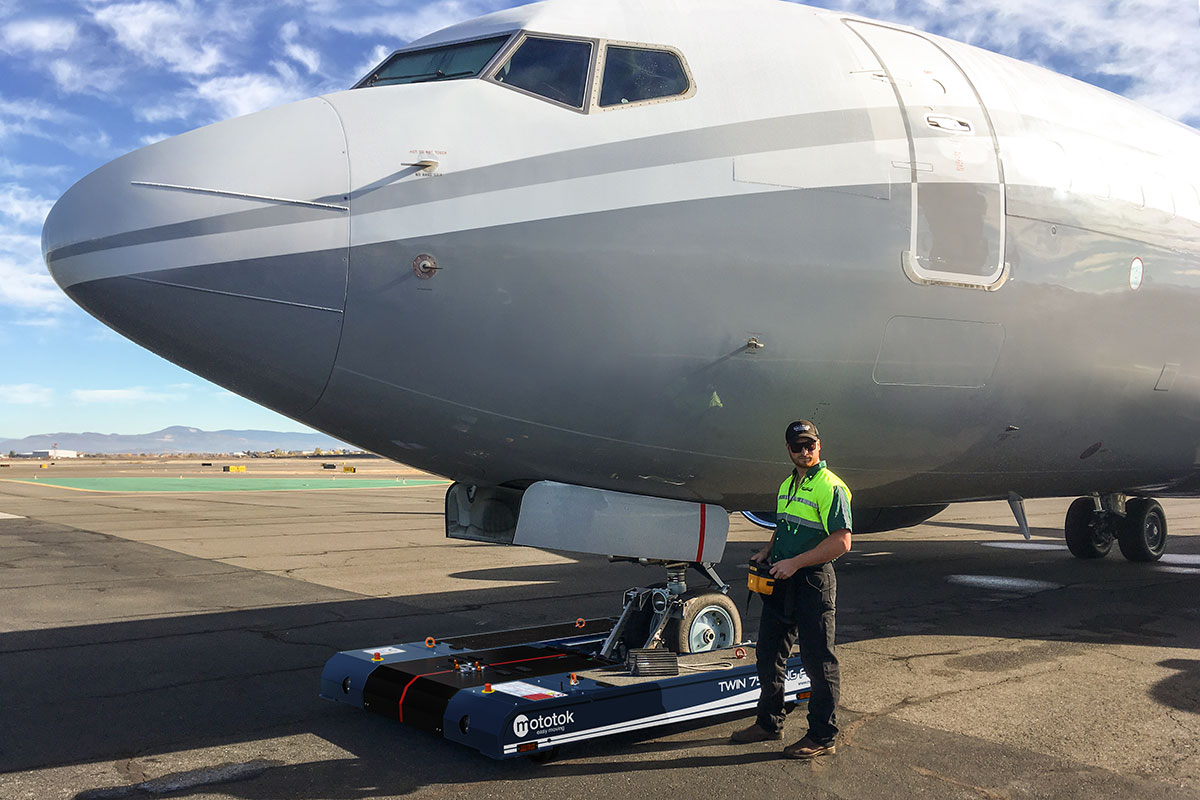

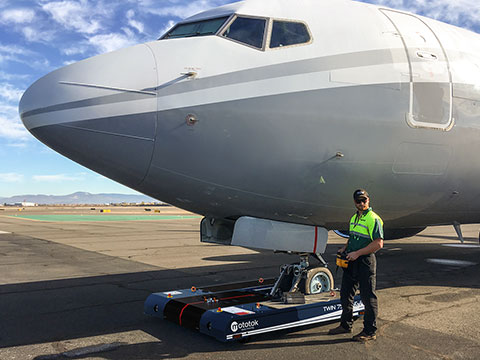

TWIN 7500 tows a BBJ-200

TWIN 7500 tows a BBJ-200

TWIN 7500 tows a BBJ-200

TWIN 7500 tows a BBJ-200


Twin wuth the nose gear of a Bombardier

Twin wuth the nose gear of a Bombardier

Twin wuth the nose gear of a Bombardier

TWIN-7500-E190-TAP-Express-Thumb

TWIN NG with an Embraer E190

TWIN-7500-E190-TAP-Express

TWIN NG with an Embraer E190

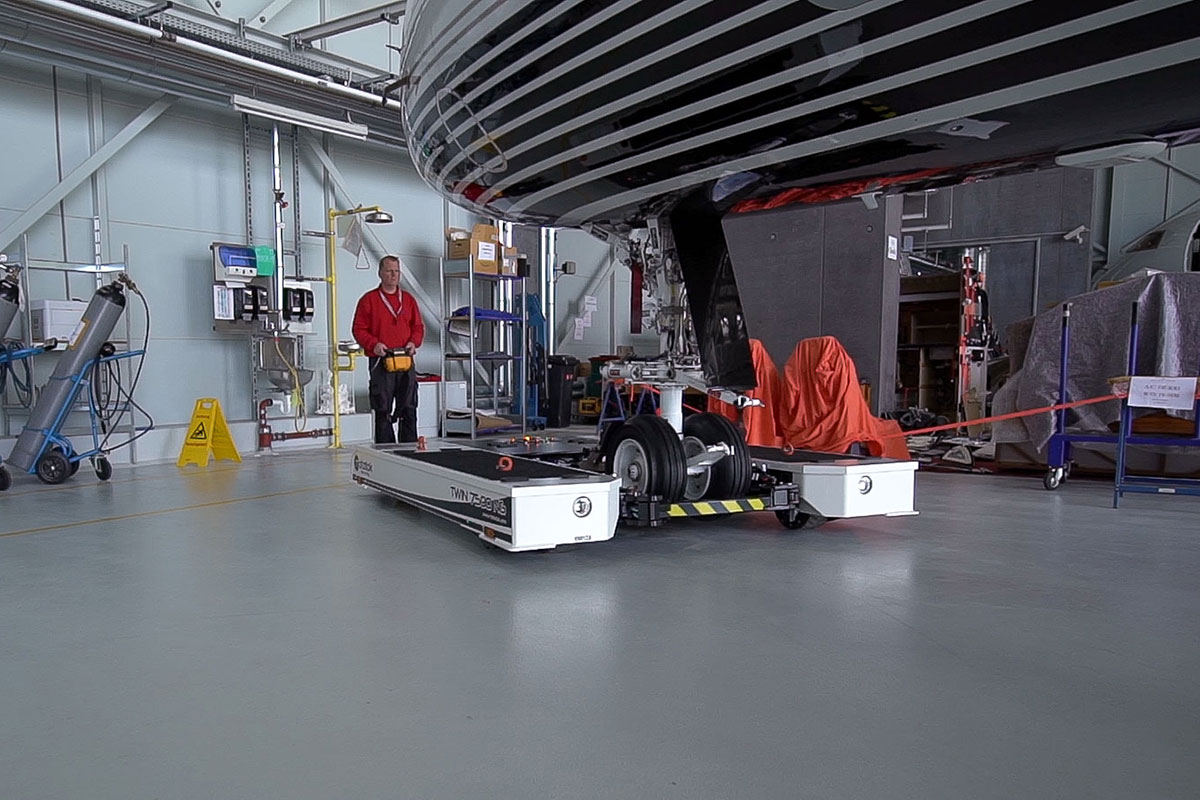

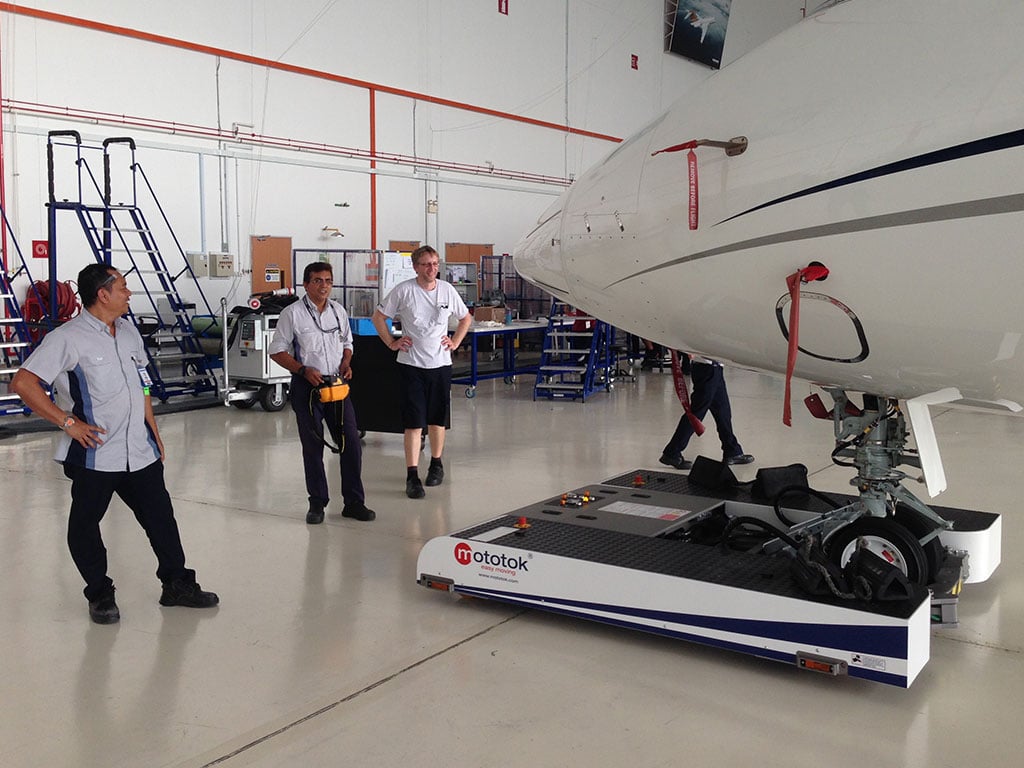

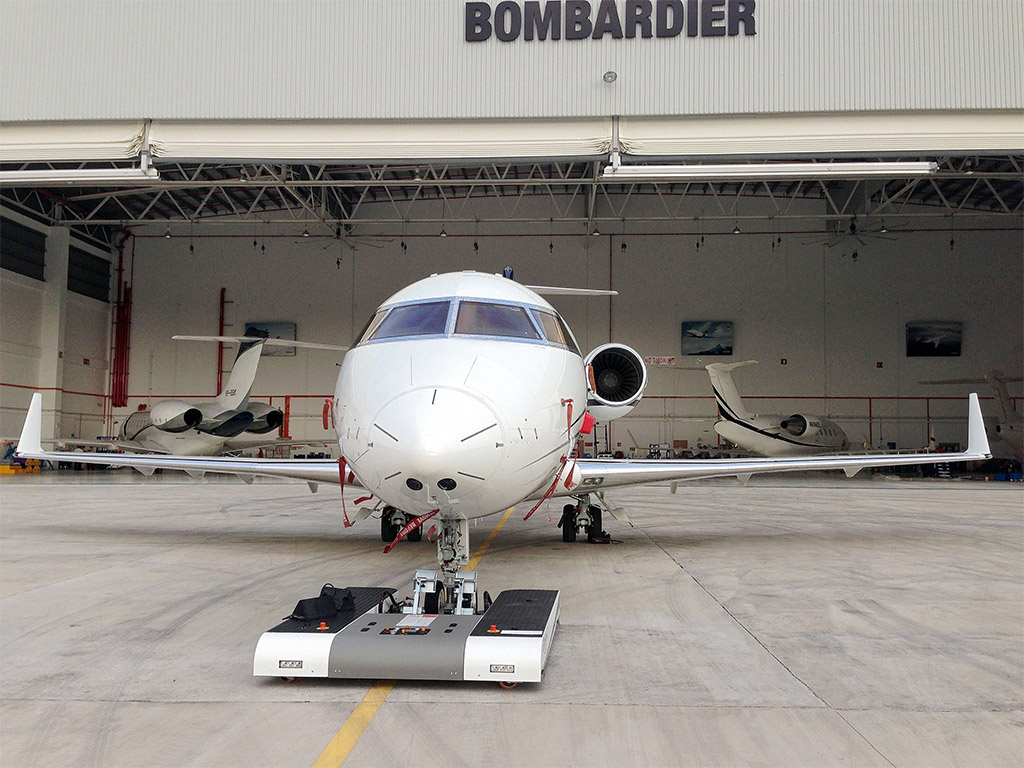

TWIN in daily use at Bombardier Hangar

TWIN in daily use at Bombardier Hangar

TWIN in daily use at Bombardier Hangar

TWIN in daily use at Bombardier Hangar

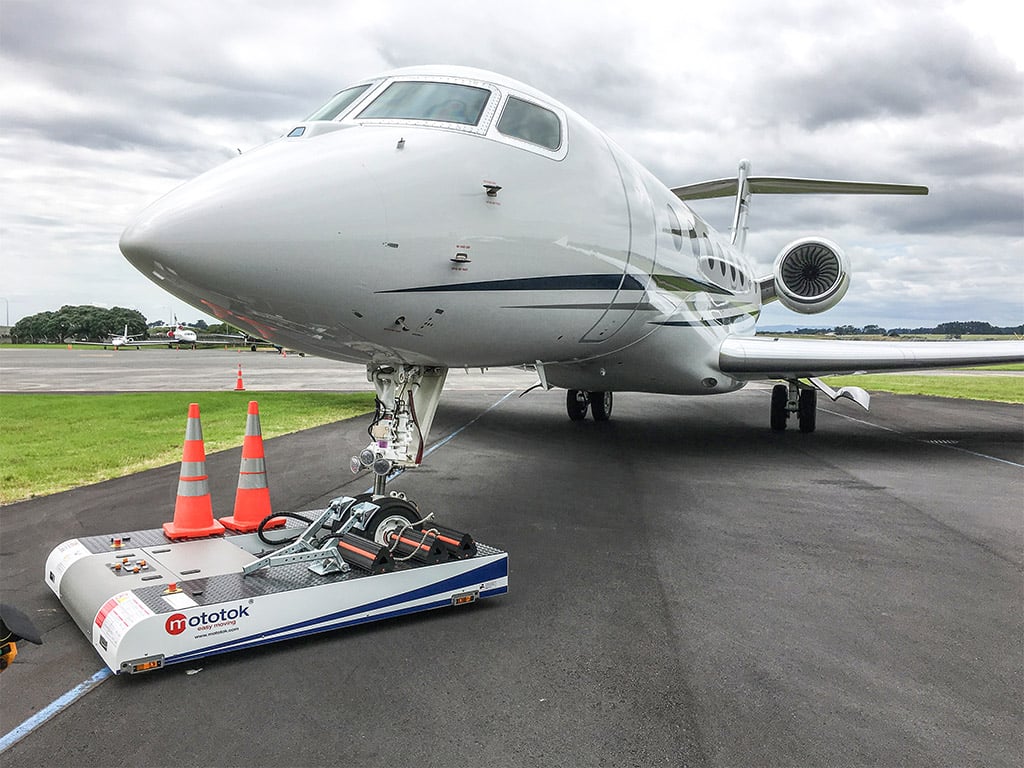

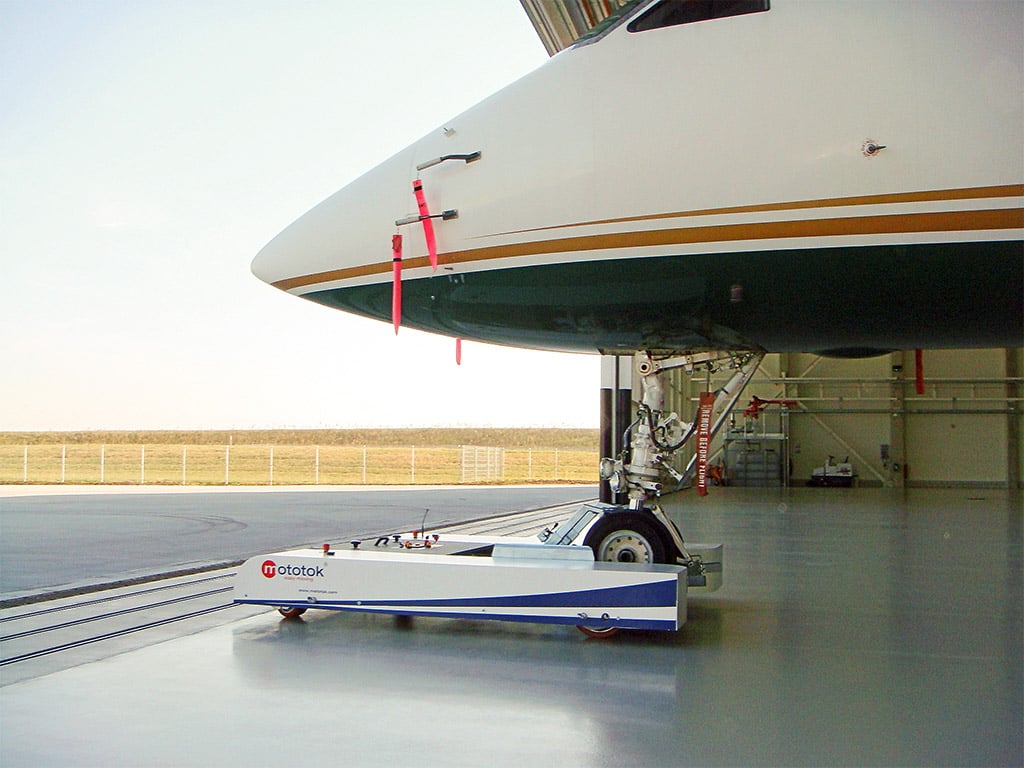

TWIN tows a Gulfstream G5

TWIN tows a Gulfstream G5

TWIN and a Gulfstream G5

TWIN tows a Gulfstream G5

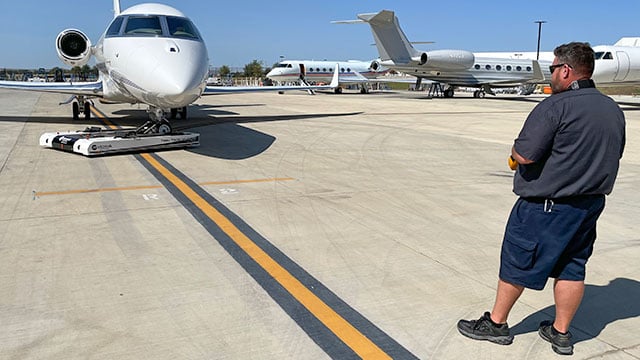

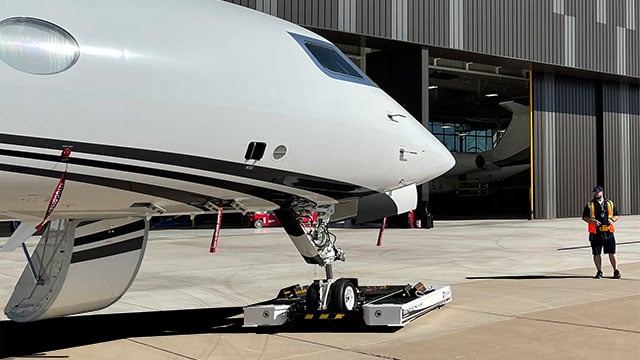

TWIN NG tows a Gulfstream

TWIN NG tows a Gulfstream

TWIN NG tows a Gulfstream G5

TWIN NG tows a Gulfstream

This series comes with outstanding benefits, such as:

  • Full electric drive
  • Radio remotely controlled
  • Fully automatic nose gear engaging function: loads and unloads the nosewheel automatically with one tap on the remote
  • Only 1 person required for operation

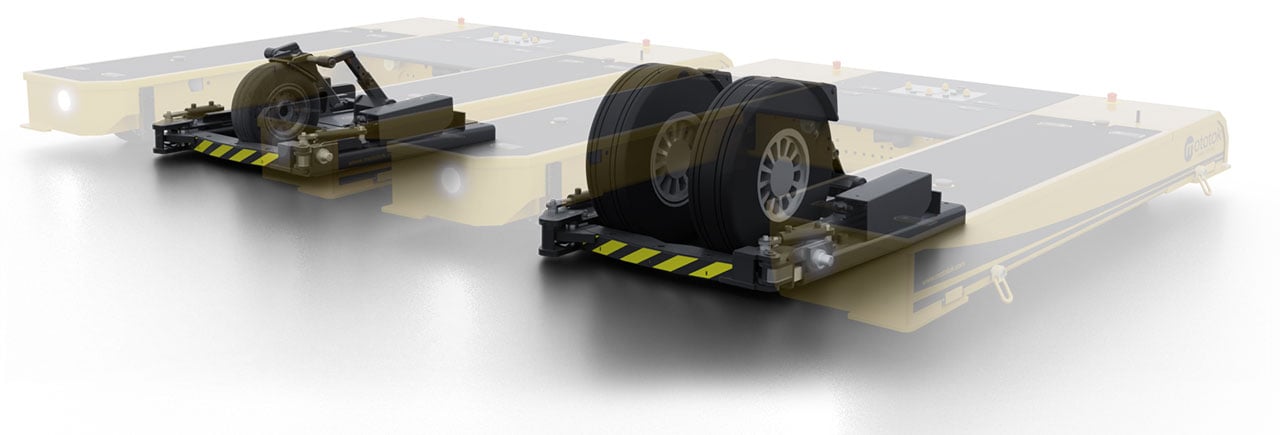

  • Applicable for single or double nose wheel
  • Hydraulic adjustment of the mouth opening depth for wheels with small diameter
  • High powered electric motors
  • No driving license required
  • Minimal operating costs
  • Minimal maintenance costs

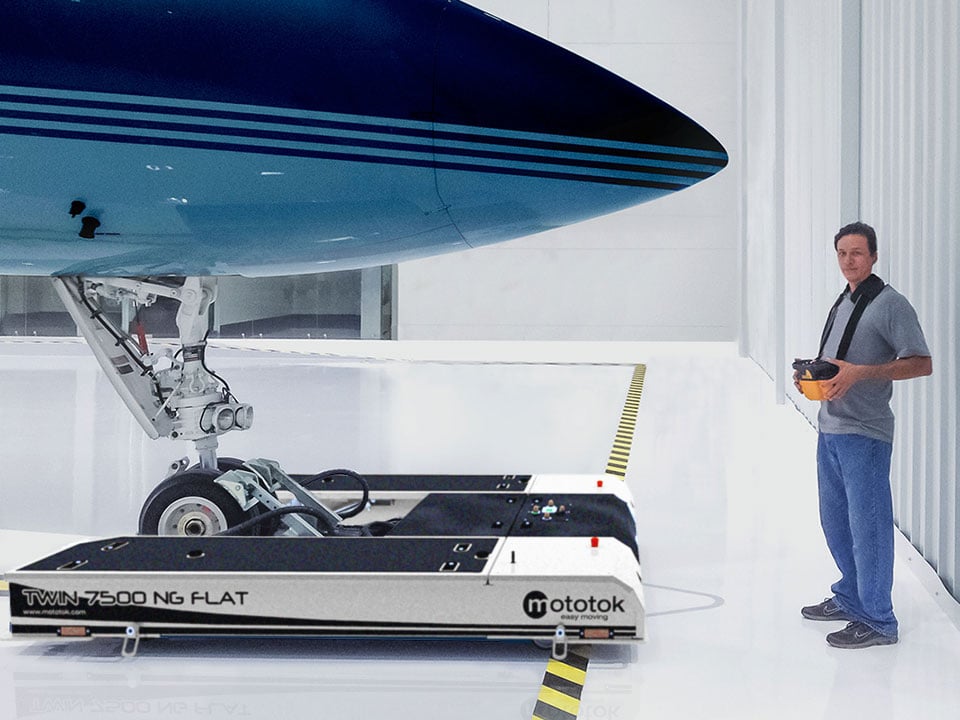

  • Park your aircraft using the last corner of your hangar and save space
  • Quickest Return on Investment

All TWIN-Models are standardly equipped with

  • Advanced Radio Remote Control
  • Fully automatic 1-click-loading system
  • Driving lights
  • Yellow flashlight and safety beeper

Optional Equipment

  • Ground power cable for gound power connection

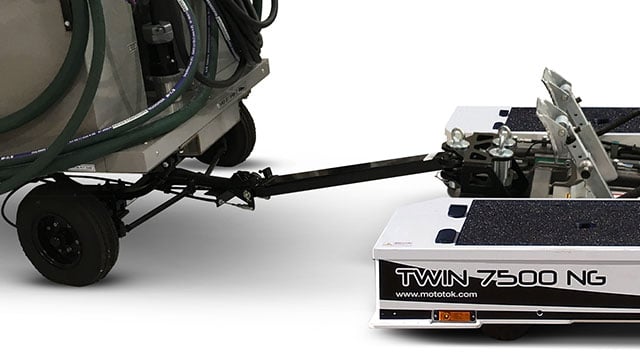

  • Trailer coupling adaptor for multi-functional extensions
  • Automatic controls by ground markings (AGV functionality)
  • Adaptations for special demands
  • Spiral cable connection (15 m) between Mototok and control unit instead of radio remote control
  • Saltwater resistance
  • Data
    Sheet
  • Request Consultation

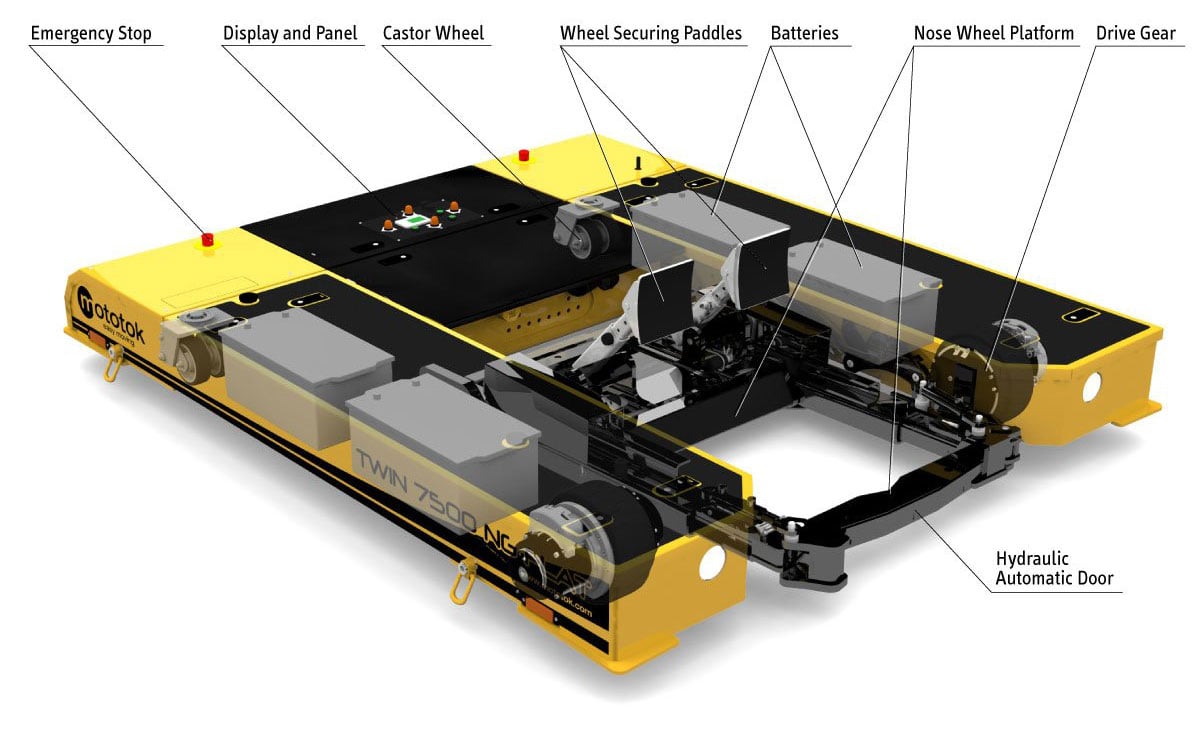

Take a Look inside

Take a look inside

Easy to Use

The loading and operating process is carried out with the utmost security and precision. In addition, it runs fully automatically on many models such as the TWIN.

Operating Procedure 1

The engaging procedure can be started automatically by pressing just one button on the remote control.

Operating Procedure 2

Drive the Mototok with opened hydraulical door and lowered platform towards the nose wheel of the aircraft until the nose wheel touches the sliding table. Then press the start-button on the remote control.

Operating Procedure 3

The hydraulical door closes. If necessary the sliding table is adjustable for fitting smaller nose wheels.

Operating Procedure 4

The sliding table presses the nose wheel towards the closed hydraulical door until a specified pressure is reached.

Operating Procedure 5

The platform lifts up and raises the nose wheel.

Operating Procedure 6

The securing paddles lowers down and clamps the nose wheel gently and safely – ready for moving the aircraft. The whole procedure takes 10-15 seconds only.

Safety First

Thanks to the hydraulic nose wheel paddles Mototok holds the nose gear in a safe and fixed position. This feature prevents effectively the nose gear from slipping out of the nose wheel opening of the Mototok. So a „Brakeman“ in the cockpit who stops the aircraft in this case is not necessary.

Turning Point

A nosewheel is basically offset in order to remain safely on track during take-off and landing. Due to this, ground position point A is not identical with construction related axis B on the landing gear.

Turning Point

Due to this design-related inclination of the nose wheel suspension, the nose wheel tilts sideways during a rotation of the Mototok. The hydraulic safety paddles automatically compensate this and gently fixes always the nose wheel securely in position.

These safety features, combined with the ease and convenient usage, distinguish the Mototok from its competitors.

Minimum space requirement

Compared to other towing principles and towing systems Mototok excels in every discipline and convinces with minimal space requirements for maneuvering. This shows the following comparison:

Conventional tow tractor with a tow bar

Conventional tow tractor with a tow bar

Maneuvering with a towbar means “steering by moving“. Turning the nose gear and moving the aircraft are two inseparable motions when using a tow bar. Turning the nose wheel is only possible when the aircraft is moved backwards or forwards. The aircraft has to be moved several metres for the nose gear to turn and move the aircraft into another direction. This in turn increases the space needed for extensive manoeuvering.

  • Many different tow bars have to be stored for different types of aircraft
  • High risk of accidents and damage of the aircraft
  • Minimum second person as a „wing walker“ needed because the driver has no overview from his position
  • High maintenance level due to combustion engine

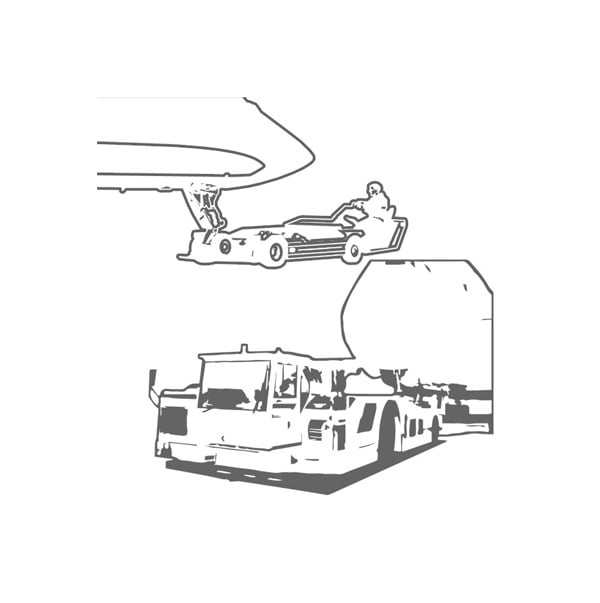

Other towbarless tugs

Other towbarless tugs

This principle means also “steering by moving“. The space requirement for maneuvering is approximately the same as with using a tow bar.

  • Winches and straps for fixation often needed
  • Minimum second person as a „wing walker“ needed because the driver has no overview from his position
  • The vehicles have big dimensions and need a lot of parking space

Other towbarless tugs

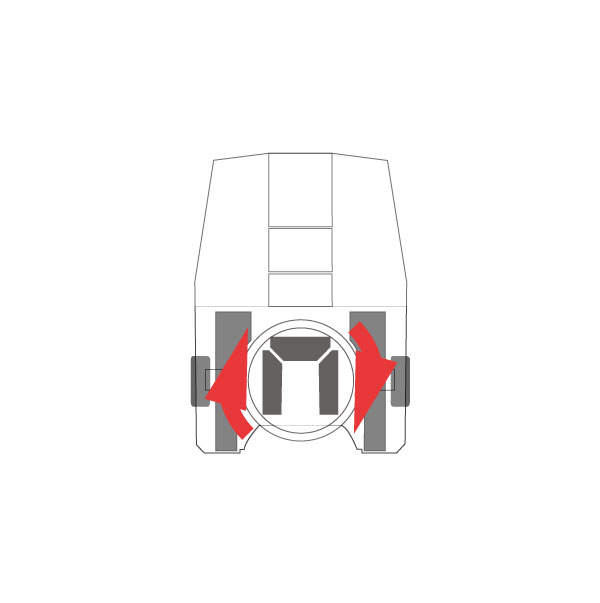

Tugs with a rotary table

This type of tug loads the nose gear on a rotary table.

  • Loads only from the left or right side of the aircraft – not directly from the front or the rear
  • No automatic fixation of the nose gear – there is no technical way to route hydraulic power onto the free rotatable platform
  • Undefined behavior of the free rotary table whilst pushing the aircraft. During pushing, the rotaring table has to be fixed in position. So the assumed advantage of an oversteering protection thanks to the free rotation of the table is nullified.

Other towbarless tugs

Moving an aircraft the innovative way – with Mototok!

Manouevering with Mototok is the easiest by far. The fuselage and wingtips remain in position whilst turning the nose gear on the spot for manoeuvering. With Mototok both turning the nose gear and moving the aircraft are two completely different movements – the deciding advantage of the Mototok tug sytem. The result is a minimum requirement of space whilst shunting the aircraft. This example shows that turning an aircraft by 90° reduces manoevering space to a circle.

  • Best overall sight thanks to remote controlled maneuverings
  • No winches, no straps, automatic convenient and automatic quick nose gear loading
  • Low maintenance thanks to full electric drive
  • Lowest space requirement when pushing or pulling the aircraft
  • Safe thanks to oversteering protection



Turning on the spot for minimal space requirements

Convenient Usage

Loading the nose gear is as simple as tapping a button on the remote.

Docking takes a matter of seconds from the rear or front of the nose wheel. Simply drive the Mototok up to the nose wheel. The wheel is then hydraulically fixed firmly in position and raised – ready for take off! All this with no awkward strap, no inconvenient winch. No bolts or tools are required.

  • Radio remote controlled operating under an industrial frequency code approved for airports
  • Automatic connection to the aircraft‘s nose wheel with one tap on a button of the remote
  • No straps, no winch, no tools required



Convenient usage: Docking takes a matter of seconds

Great choice – depending on your needs

TWIN 7500

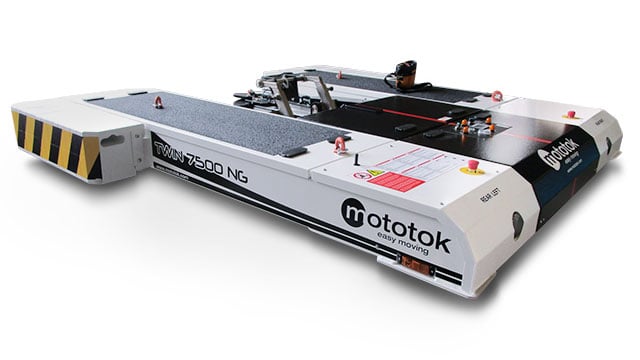

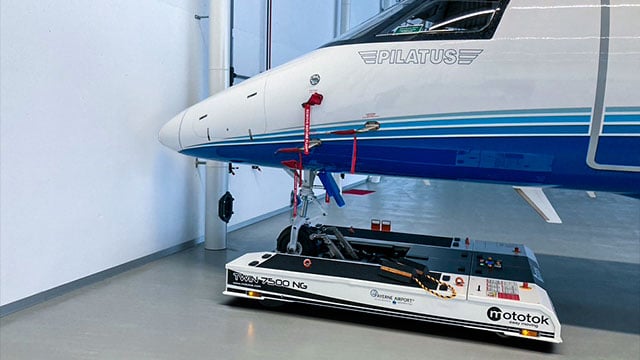

TWIN 7500 NG
TWIN 7500 NG Flat
Towing capacity 75 t (165347 lbs)

Single Nose Wheel Double Nose Wheel Wheeled Helicopter up to 75t

Our strongest model to the TWIN Class – specially designed for operations on ships, offshore platforms and other extremely harsh conditions. Quartz sand tyres for ultimate grip available.

  • tows up to 75 t (165,347 lbs)
  • applicable for aircraft with single or double nose wheel, wheeled helicopters
  • ground clearance 110 mm (4.33") resp. 85 mm (3.35") by the „Flat“ Model
  • fixes the aircraft fully automatically in about 10 seconds
  • for a Nosewheel Diameter of 180 mm (7.09") - 670 mm (26.38")
  • maximum nose wheel weight capacity: 7.5 t (16,535 lbs)

Useable for Aircraft like

  • Boeing 737 BBJ
  • Gulfstream 650
  • Bombardier Global Express
  • Dassault Falcon
  • ATR
  • Pilatus
  • Hawker

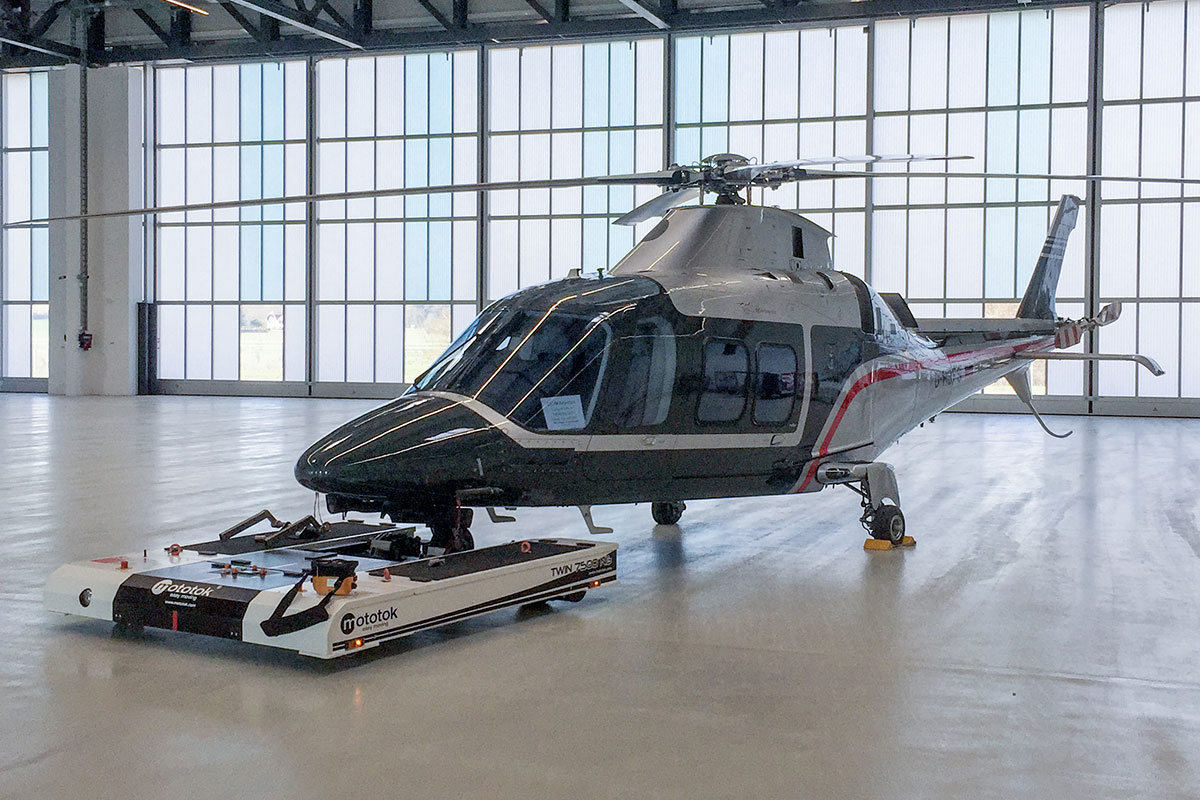

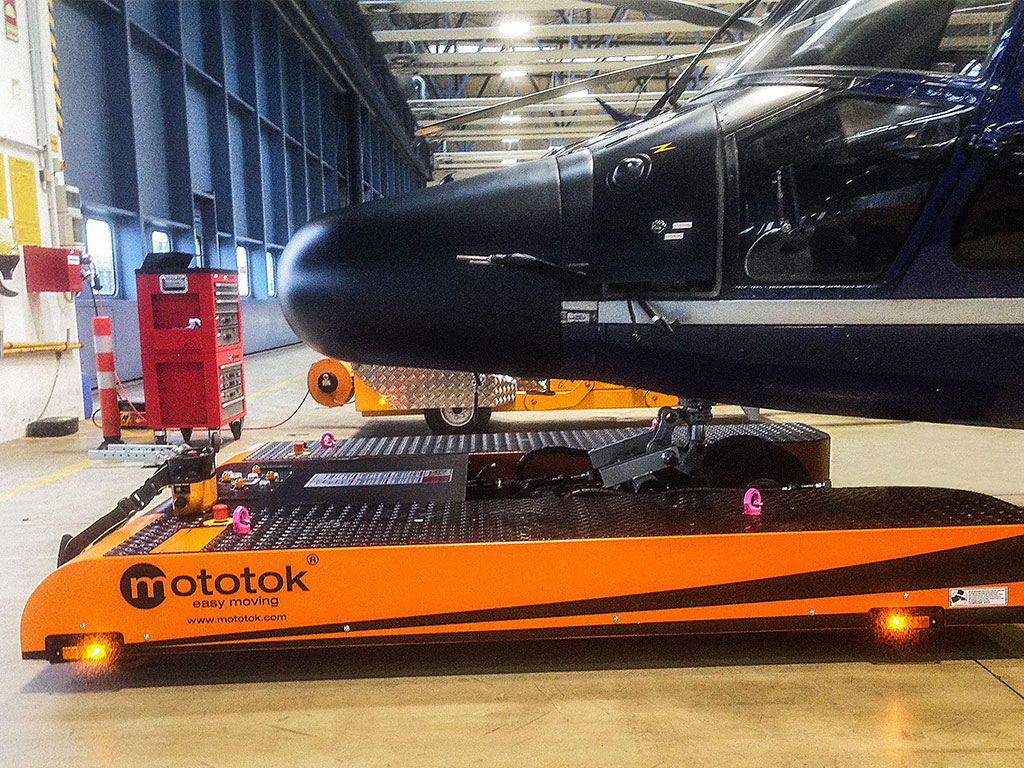

Nearly all wheeled Helicopter like

  • Sikorsky
  • Airbus Helicopter
  • Bell

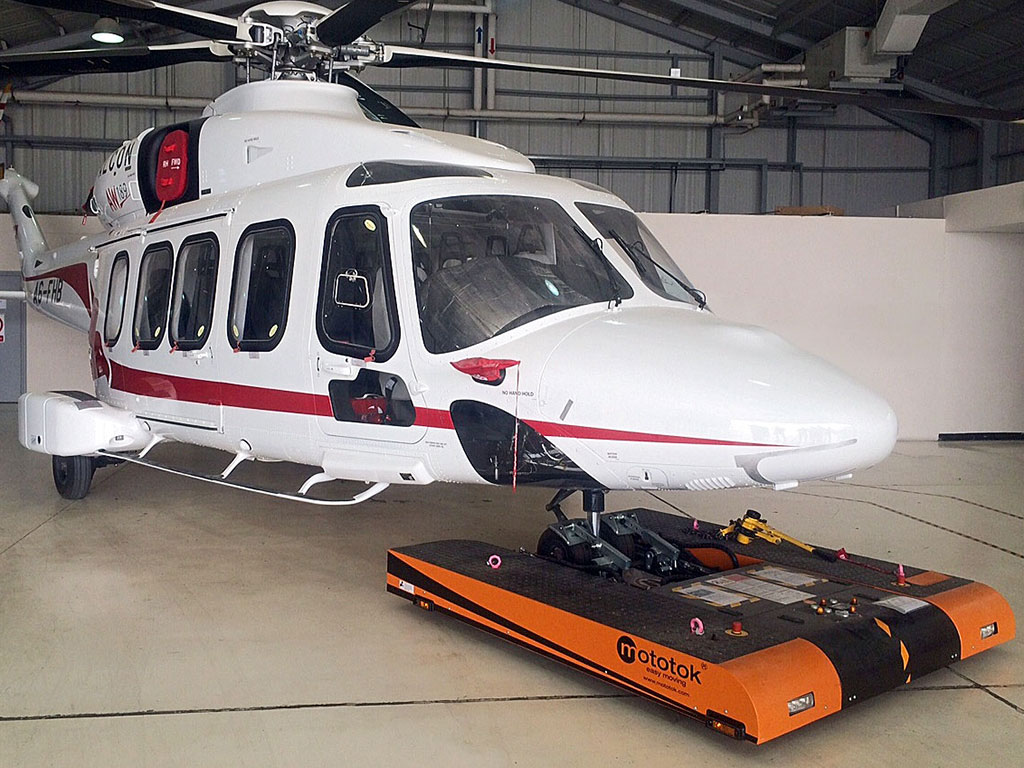

  • Leonardo / AgustaWestland
  • NH 90

Military Machines like

  • Eurofighter
  • Tornado
  • F16, F18
  • Saab Gripen
  • Dassault Rafale
  • Grumman E2C Hawkeye

GET MORE INFORMATION

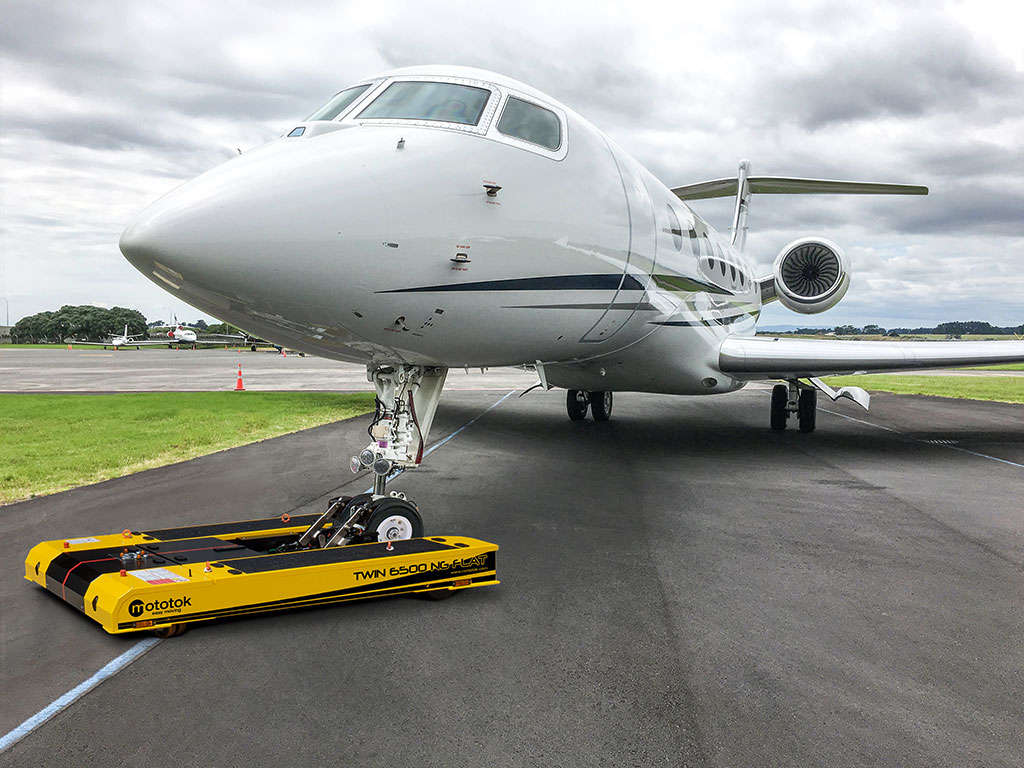

TWIN 6500 NG
TWIN 6500 NG Flat
Towing capacity 50 t (110231 lbs)

Single Nose Wheel Double Nose Wheel Wheeled Helicopter up to 50t

The Mid-Class TWIN Model – our „Best-Seller“ for almost all demands.

  • tows up to 50 t (110231 lbs)
  • applicable for aircraft with single or double nose wheel, wheeled helicopters
  • ground clearance 110 mm (4.33") resp. 85 mm (3.35") by the „Flat“ Model
  • fixes the aircraft fully automatically in about 10 seconds
  • for a Nosewheel Diameter of 180 mm (7.09") - 670 mm (26.38")
  • maximum nose wheel weight capacity: 6 t (13228 lbs)

Useable for Aircraft like

  • Gulfstream 650
  • Bombardier Global Express
  • Dassault Falcon
  • ATR
  • Pilatus
  • Hawker

Nearly all wheeled Helicopter like

  • Sikorsky
  • Airbus Helicopter
  • Bell
  • Leonardo / AgustaWestland
  • NH 90

Military Machines like

  • Eurofighter
  • Tornado
  • F16, F18
  • Saab Gripen
  • Dassault Rafale
  • Grumman E2C Hawkeye

GET MORE INFORMATION

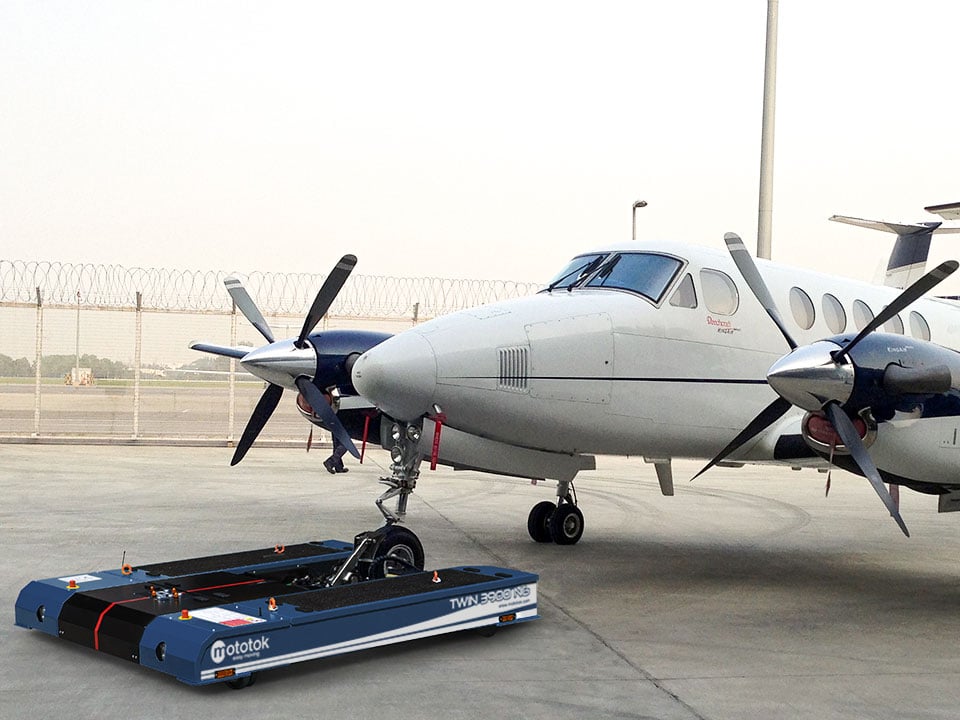

TWIN 3900 NG
Towing capacity 39 t (85980 lbs)

Single Nose Wheel Double Nose Wheel Wheeled Helicopter up to 39t

The entry level to the TWIN-Class

  • tows up to 39 t (85980 lbs)
  • applicable for aircraft with single or double nose wheel, wheeled helicopters
  • ground clearance 110 mm (4.33")
  • fixes the aircraft fully automatically in about 10 seconds
  • for a Nosewheel Diameter of 180 mm (7.09") - 670 mm (26.38")
  • maximum nose wheel weight capacity: 4.5 t (9921 lbs)

Useable for Aircraft like

  • Bombardier Challenger
  • Embraer Legacy
  • Lear Jet
  • Cessna

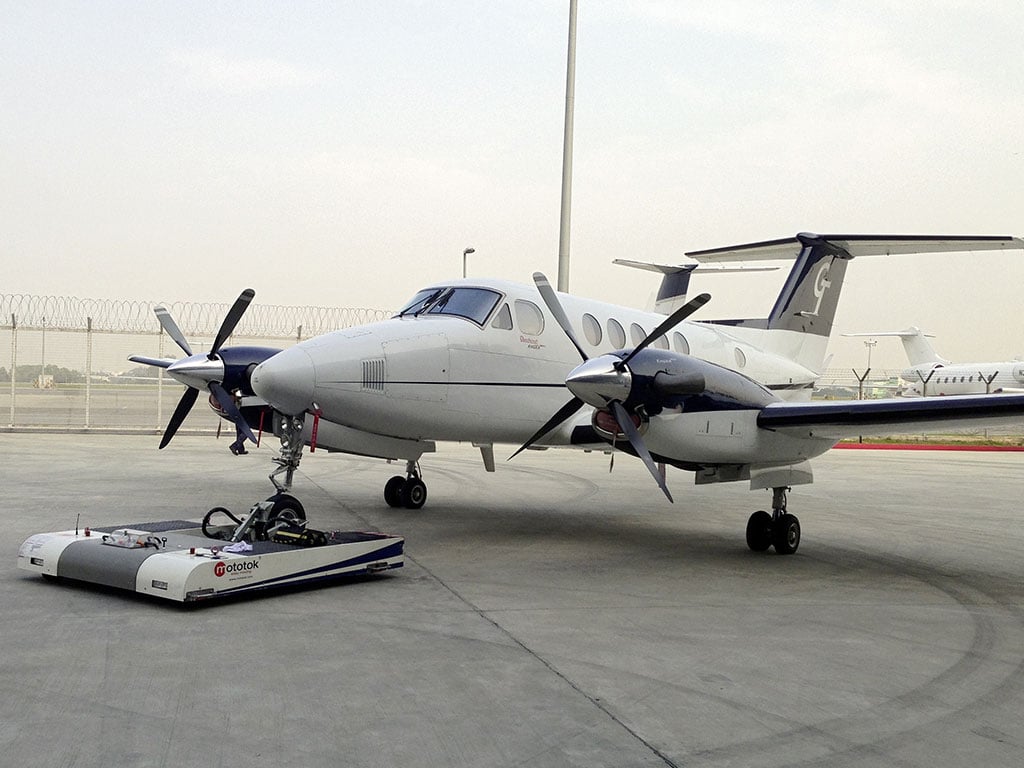

  • Beechcraft
  • Dassault Falcon
  • Hawker
  • Pilatus

Nearly all wheeled Helicopter like

  • Sikorsky
  • Airbus Helicopter
  • Bell
  • Leonardo / AgustaWestland
  • NH 90

Military Machines like

  • Eurofighter
  • Tornado
  • F16, F18
  • Saab Gripen
  • Dassault Rafale
  • Grumman E2C Hawkeye

GET MORE INFORMATION

Our Specialist for special aircraft


TWIN Wide 14
Towing capacity 85 t (187393 lbs)

Double Nose Wheel up to 85t

This is our specialist for aircraft with a nose wheel width of up to 1425 mm.

  • tows up to 85 t (187,393 lbs)
  • ground clearance 85 mm (3.35")
  • fixes the aircraft fully automatically in about 10 seconds
  • Maximum Nosewheel width: 1425 mm (56.1")
  • for a Nosewheel Diameter of 180 mm (7.09") - 670 mm (26.38")
  • maximum nose wheel weight capacity: 12 t (26,455 lbs)

Useable for Military Aircraft like

  • Lockheed C-130 / Hercules
  • Embraer KC-390
  • Airbus A400M
  • other military transport Aircraft

Useable for civil Aircraft like

  • Boeing 737 and all other bigger double wheel types

GET MORE INFORMATION

Not sure if this tug fits your specific aircraft?
Let’s have a look!

We will get back to you within one business day. (Probably quicker, we’re German.)
