Towbarless Tugs

Tons of Benefits And less trouble by far

  • low utilization of your hangar with a conventional tow tractor or TBL
  • up to 40% more utilization with an emission-free towbarless mototok aircraft tug
  • inefficient and complicated job requiring 4 people
  • safe and easy 1-Man-Operation thanks to remote control

More Safety. less headache.

millimeter-accuracy.svg

Exceptionally Compact Design.
Thanks to Mototok's extremely flat format, you don't need to allow for an exit path in your hangar, and problems with equipment mounted underneath the fuselage are a thing of the past.

safe-easy.svg

Easy and Safe Operation.
Automatic processes, full programmability and easy usage that doesn’t even require trainings: Human error posing risk to machines and men is virtually taken out of the equation.

one-person-job.svg

One Man Operation.

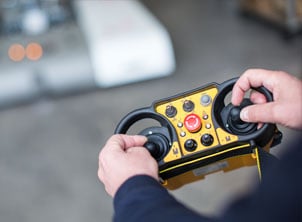

As Mototok tugs are moved with a radio remote control providing 100% visibility, towing with a mototok is a foolproof one-man-operation without the need for a wingman.

Benefits at a Glance. increase performance, avoid accidents.

no-emissions.svg

Excellent Green Credentials.
Extremely powerful and emission-free electrical motors, driven by high-performance, maintenance-free GEL batteries with high cycling capability provide enormous driving forces.

cost-effective.svg

Quickest ROI.
Low maintenance and personnel costs and a truly remarkable performance increase: Industrywide, Mototoks are the tugs with the quickest Return On Investment.

approved-for.svg

Flexible Use.
Whether in the hangar, on the tarmac or in the production hall: one type of machine suitable to a wide range of machines, plus including GPU and Pushback.


Request Your Free Consultation

See Mototok in Action An unparalleled operation

So how does it work? simple. safe. and extremely effective.


    Meet the perfect aircraft tug

    With the capabilities of towing and pushing any aircraft up to 195 tons, perfectly optimized utilization of space, eco-friendly drive and extremely low maintenance and personnel costs that cause the quickest ROI in the industry, Mototok vehicels are simply the best choice for any kind of towing and pushback operation.

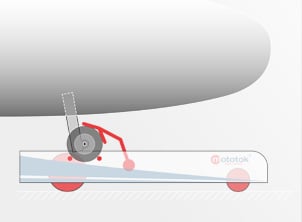

    Safe One-Click Fixation

    Docking is a matter of seconds. It works from either the rear or front of the nose wheel and doesn’t require straps, winches, bolts or tools. Simply drive the mototok up to the nose wheel. When the nose wheel is raised, it will then be secured by a hydropneumatically operated wheel securing system. The nose wheels tilt on account of offset nosewheel gear mechanism and are also kept in a fixed tilted position under constant ground contact pressure provided by the hydro-pneumatic system of the model M-Series and TWIN. The nose gear platform of the Model SPACER is gimbal-mounted with three hydraulic cylinders. This compensates the tilted position whilst turning the nose gear. A towbar isn't needed at any time.

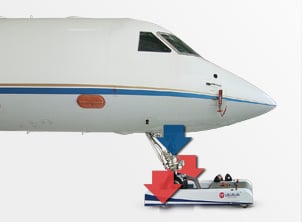

    EXCEPTIONALLY HIGH NOSE WHEEL PRESSURE

    The nose wheel pressure is positioned exactly between the two drive wheels of mototok. So the resulted ground contact pressure is very high. A very high ground contact pressure ratio in relation to the total aircraft weight is attained due to the fact that the driving wheels are 100mm wide. Under these circumstances, mototok can be operated without any problems in rain, snow or on ice.

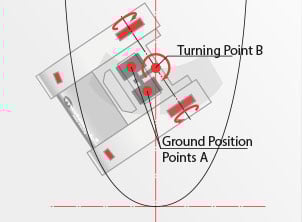

    TURNING ON THE SPOT WITH NO WINGTIP MOVEMENT

    A nose wheel is basically offset in order to remain safely on track during take-off and landing. Due to this, ground position point A is not identical with construction related axis B on the landing gear. Mototok is intelligent. The steering of a Mototok is performed through different rotating speed of both processor-controlled wheel-hub motors. A perfect turn on the spot is no problem: one motor rotates forwards, the other backwards. Both motors recognise rotational resistance and carry out a precise turning maneuver around axis B on landing gear. The result: no wingtip movement during rotating the nose gear

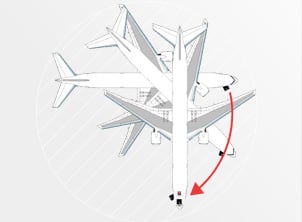

    Smallest space for a 90°-turn

    Mototok is the only system, which can perform a turn by 90° with a minimal space requirement by directly turning the nose gear. No long ways for shunting the aircraft – Mototok turns the whole airplane around its center.

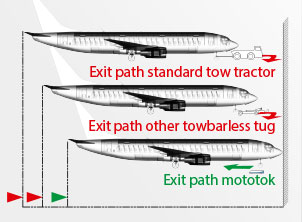

    NO EXIT PATH, MORE PARKING SPACE

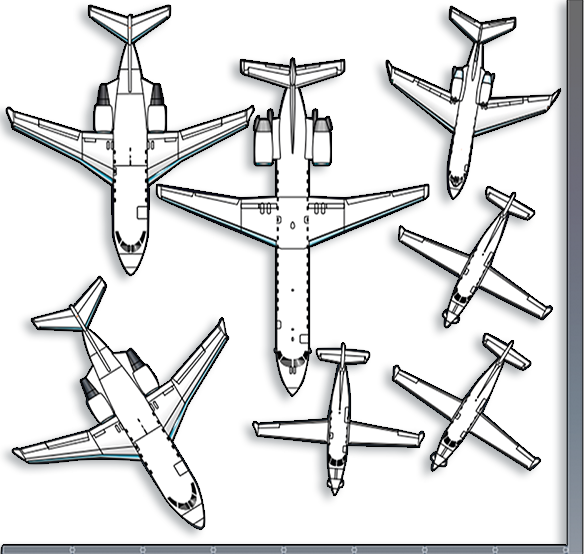

    Due to Mototok’s exceptionally low height and compact design, there is no exit path to consider when attaching or detaching from the aircraft’s nose gear. It becomes possible to utilize every last inch of your hangar. Thanks to the tug’s “snail” mode, tail section or wings of your aircraft can be maneuvered so exactly and thus so safely that they are nearly touching the hangar wall or next aircraft when parked. The operator then only needs to back out, and lean back with the pleasant feeling of having utilized up to 40% more space of the hangar. This is a towbarless tug on a whole new level.

The Mototok Principle

Easy Loading

Product Overview

3D-M

The M

single-nosewheel.svg double-nosewheel.svg wheeled-heli2.svg

  • tows up to 28t (61,729lbs)
  • for single and double nose wheels and wheeled helicopter
  • one click fixation
  • speed up to 0.89 m/s (2mph)
  • fix aircraft in 10 seconds

LEARN MORE

3D-Twin-Flat

Twin Series

single-nosewheel.svg double-nosewheel.svg wheeled-heli2.svg

  • tows up to 50t (187,393lbs)
  • single and double nose wheels and wheeled helicopter
  • adjustable to different wheel sizes
  • extra low construction height available

LEARN MORE


Spacer

double-nosewheel.svg

  • tows up to 195t (429,901lbs)
  • for double nose wheels
  • one click fixation
  • speed up to 6km/h (6.21mph)
  • Pushback capability
  • NTO license for 737‘s and 320-family

LEARN MORE

3D-Helimo

Helimo

skidded-heli.svg

  • tows up to 6t (13,228lbs)
  • for skidded helicopter
  • speed up to 6km/h (3.73mph)
  • 8 alternative ways to fix aircraft
  • compatible with your FLIR system

LEARN MORE
