Improve Your Pushback Operations efficiency significantly.

The new Spacer 8600 NG.

The Mototok Spacer 8600 NG comes with a bunch of innovative features: safety and simplicity in mind. It is considered state-of-the-art amongst compact pushback tractors – in terms of technology, economy and ecology. The Spacer 8600 operates at several airports around the world, delivering performance, efficiency and enabling punctuality. The 28 units operating at Heathrow, Terminal 5A, for instance, complete more than 100,000 pushbacks each year.

The enhanced SPACER 8600 NG has new features that further simplify operation on the tarmac e.g., onboard charger with CEE plug, so that it can be charged wherever an industrial socket is available, remote control now features an integrated display and many more.

Our towbarless tug is compatible with the most important short-haul aircraft:

  • Airbus A320 Family incl. 321 NEO
  • Boeing 737, Boeing 737 MAX
  • Embraer E-Jets
  • MHI / Bombardier CRJ

Perfectly Though-out Design.

Make it yours.

Electric driven
Electrically powered pushback tugs.
Powerful and emission-free electric motors provide enormously powerful driving forces.
One-Person Job
One-Person Job
Thanks to radio remote control providing 100% visibility, working with a mototok is a foolproof one-man operation.
low-spacer-requirement
Low space requirement
Mototok can be parked directly in the immediate vicinity of the gate without becoming an obstuction.

More Revenue.

Thanks to power of engineering.

Cost Effective
Cost Effective
Enormous cost reduction in staff, operational and maintenance costs. Planning and scheduling becomes more easy and flexible.
Everybody can use Mototok pushback tugs!
Everybody can use Mototok pushback tugs!
A Half-day training for the staff is all you need. No driving license required.
One for three.
One for three.
One Mototok pushback tug is able to manage up to three boarding bridges.

Eco friendly.

And low Maintenance.

No fuel costs.
No fuel costs.
Fully electrive drive – green and carbon dioxide free.
Fast recharging
Fast recharging
Recharge Mototok Spacer fully in about 3 hours. Up to 30 pushback operations are possible with one battery charge.
Low Maintenance
Low Maintenance
Compared to conventional combustion engines and other drive arrangements electric motorised machines are much less maintenace-sensitive.

„Internet of Things (IOT)“ - Interface

Mototok comes with a central processing unit (CPU) for features and adjustments relating to:
  • Towing and braking forces
  • Oversteering protection and counter steering
  • Unit diagnostics and health monitoring
  • Log files
Mototok-CPU-640

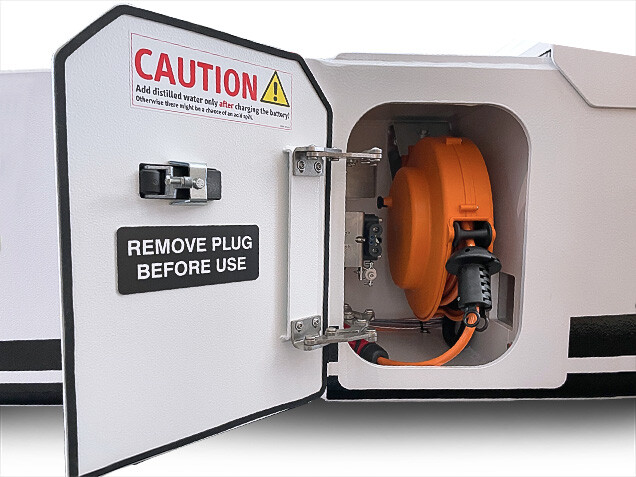

On Board Charger with CEE Plug –Charge anywhere anytime

  • Charger stored inside the vehicle
  • Cable stored inside the vehicle
  • No fixed charging points
  • Self retracting cable optimal for everyday usage
  • Automatic cable drum left or right attachable
On-Board-Charger

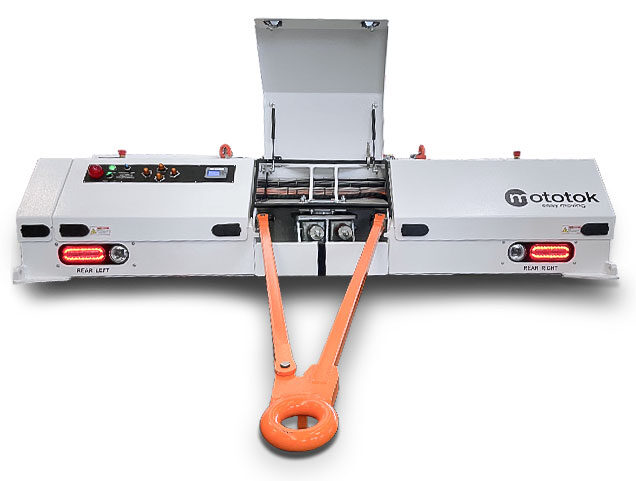

Integrated Towbar for towing the Tug.

  • with integrated storage compartment
Spacer 8600-integrated-towbar-01b

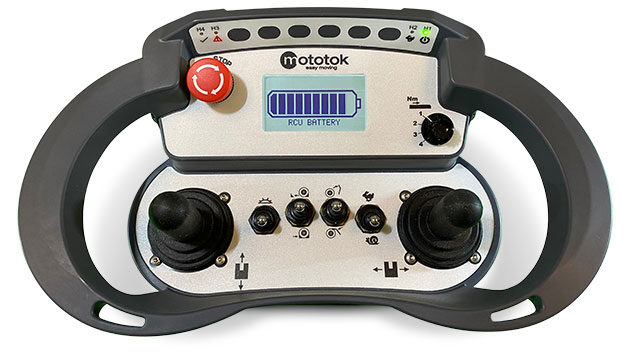

Professional Safety radio Remote Control.

  • 2,8" TFT LCD Display (240x320 Pixel)
  • Safety performance up to PL e, SIL 3
  • Protection level IP65 and seawaterproof design
  • Dead man switch (falling)
  • Fall safe 1,5 m
  • Safe connection start up function
  • Frequency scanning and hopping
  • Secure key for safe access
  • Lithium battery with BMS and 9h battery life
Radio-Remote-Control

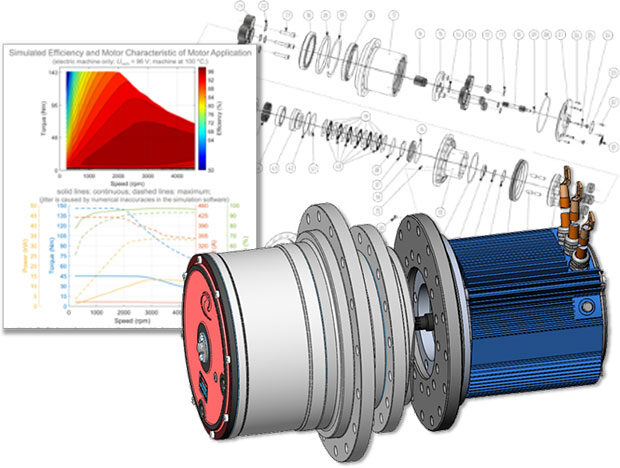

Next Generation Permanent Magnet Synchronous Driving Motors.

  • Developed from university spin-off
  • Newest marked available technology:
    Magnetic flux field control · IPM technology
  • Energy efficient:
    Permanent magnets · Synchronous machine · Efficiency more than 96 %
New-Motor-Visual-620px

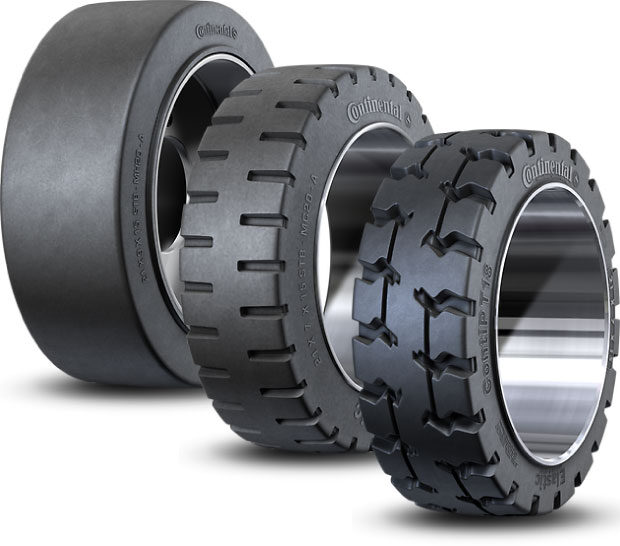

New Ultrasoft Tires.

With a specially designed load-bearing construction, the tyres used by Mototok for the Spacer 8600 NG enable safe transport of heavy loads with small wheel circumferences. The rubber compound guarantees high mileage and at the same time outstanding cut resistance with very low rolling resistance. A discussion with our specialists will clarify which tyre is specifically required for your application.

All tyres are characterised by:

  • High tipping stability
  • High load capacity
  • Low rolling resistance
  • Robust construction
  • High traction
  • Good lateral stability
Conti-Tyres

Technical Data

SPACER 8600 NG
SPACER 8600 NG
  • double wheel
  • tonnage
Field of Application Pushback
Use Case

Airbus A220, A318, A319, A320, A321

Boeing 737 + MAX

Embraer E135, E170, E190 + E2

MHI CRJs

Towing Capacity 105 t
231486 lbs
Nosewheel Weight Capacity 10 t
22046 lbs
Dimension
Width x Length x Height 2800 x 3555 x 701 mm
110.24 x 139.96 x 27.6 "
Ground Clearance 73 mm
2.87 "
Max width of the Nosewheel 851 mm
33.5 "
Nosewheel Diameter 640 - 850 mm
25.2 - 33.46 "
Unladen Weight 5100 kg
11244 lbs
Motor Performance Not specified
Drive Wheel Width 305 mm
12.01 "
Drive Wheel Diameter 563 mm
22.17 "
Speed Not specified
Not specified
Not specified
Batteries 4 x 330 Ah
Voltage 96 V
Tyres puncture-proof super elastomer tyres
T 7000
T 7000
  • double wheel
  • tonnage
Field of Application Pushback
Use Case

Embraer E135, E170, E190 + E2

MHI CRJs

Pilatus PC-12

Pilatus PC-24

Hawkers

Gulfstream G280, G300, G350

Gulfstream GIV (G450)

Gulfstream G500/G600, G650

Gulfstream G700, G800

Embraer Phenom 300

Embraer Praetor 500, 600

Embraer Legacy

Bombardier Challenger 300, 604

Bombardier Challenger 3500, 650

Bombardier Global Express

Bombardier Global 6500, 5500

Bombardier Global 7500, 8000

Boeing Business Jet

Citation CJ1, CJ2. CJ2+, Sovereign

Piper Diamond

King Air

Learjet

Sikorsky

Agusta-Leonardo

Lockheed Martin F16, F35

Aermacchi T346 - MB 339, T 345

ATR 42 200-600, ATR 72 200-600

Towing Capacity 75 t
165300 lbs
Nosewheel Weight Capacity 7.5 t
16500 lbs
Dimension
Width x Length x Height 2136 x 2596 x 350 mm
84.09 x 102.2 x 12.76 "
Ground Clearance 110 mm
4.33 "
Max width of the Nosewheel 665 mm
26.18 "
Nosewheel Diameter 180 - 670 mm
7.09 - 26.38 "
Unladen Weight 2100 kg
4600 lbs
Motor Performance 5 kW
Drive Wheel Width 100 mm
3.94 "
Drive Wheel Diameter 300 mm
11.81 "
Speed 1.5 m/s
5.4 km/h
3.36 mph
Batteries 4 x 210 Ah
Voltage 48 V
Tyres puncture proof tyres with quartz sand particles
